Why Do Cummins ISX Liners Drop?

Why Do Cummins ISX Liners Drop?

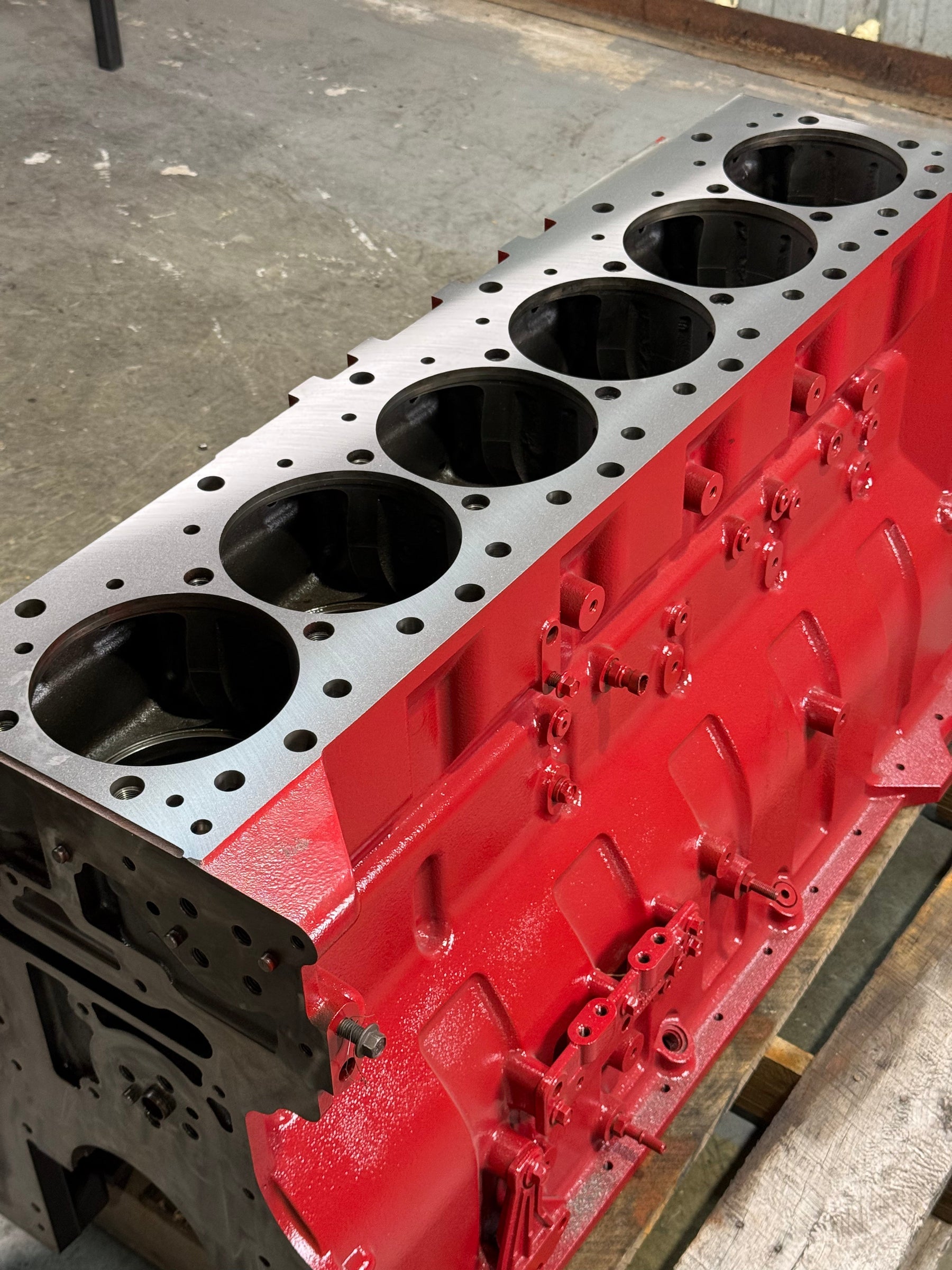

The Cummins ISX is one of the most popular heavy-duty diesel platforms on the road. Known for its power and torque, it’s commonly found in high-horsepower and long-haul applications. However, one issue that has become well known in the industry is liner drop.

If you own or operate an ISX engine, understanding why liners drop — and how to prevent it — can save you from major downtime and expensive repairs.

What Is a Dropped Liner?

The ISX is a wet-liner engine. Each cylinder liner sits inside a machined step in the block called the counterbore. The liner must protrude slightly above the block deck to allow the head gasket to seal properly.

When that liner loses height due to counterbore wear or block movement, it is referred to as a “dropped liner.”

Even a few thousandths of an inch can cause:

• Head gasket failure

• Coolant pressurization

• Combustion gases in the cooling system

• Repeated overheating issues

The Main Causes of ISX Liner Drop

1. Counterbore Wear (Most Common Cause)

Over time, high combustion pressure and constant heat cycles cause the liner to “hammer” against the counterbore ledge. This pounding effect gradually wears the block.

Once the counterbore erodes, liner protrusion drops and sealing failure follows.

2. High Horsepower & Heavy Load Applications

Many ISX engines are tuned for 550–600+ horsepower. Higher cylinder pressure increases stress on:

• The block deck

• The counterbore seat

• The head gasket fire ring

More power equals more stress — and more stress accelerates counterbore failure.

3. Overheating

Heat weakens metal. Repeated overheating softens the counterbore area and speeds up wear.

Common causes include:

• Poor coolant maintenance

• EGR system issues

• Thermostat failures

• Restricted radiator flow

An overheated ISX is far more likely to experience liner drop later on.

4. Improper Machining During Rebuild

One of the biggest mistakes during overhaul is skipping proper counterbore machining.

If a block is rebuilt without:

• Cutting the counterbores

• Checking liner protrusion

• Shimming properly

• Verifying deck flatness

…the liner is likely to drop again.

Proper machining is not optional on an ISX — it is critical.

5. Block Fatigue Over High Mileage

High-mileage ISX blocks (800,000–1,000,000+ miles) naturally develop material fatigue. Over time, the block loses some structural integrity in the counterbore area, making it more susceptible to liner movement.

Signs You May Have a Dropped Liner

Watch for these warning signs:

• Coolant pushing out of the overflow tank

• Pressurized cooling system shortly after startup

• White smoke from the exhaust

• Repeated head gasket failures

• Hard upper radiator hose within minutes of starting

• Low liner protrusion during tear-down inspection

If ignored, liner drop can lead to catastrophic engine failure.

How to Prevent ISX Liner Drop

The key is proper machining and preventative measures during overhaul:

• Always cut counterbores during rebuild

• Install quality shims or inserts

• Measure liner protrusion precisely

• Deck the block if necessary

• Maintain proper coolant chemistry

• Avoid overheating at all costs

For high-horsepower applications, counterbore cutting should be considered mandatory — not optional.

Final Thoughts

Liner drop on the Cummins ISX is not random. It is the result of stress, heat, and wear — often combined with improper machining practices.

When rebuilding an ISX engine, precision machining and proper measurements make the difference between a reliable long-term build and a repeat failure.

If you’re experiencing signs of liner drop or planning an overhaul, addressing the counterbores correctly the first time is critical to protecting your investment.
